The Hunteman, 30'x40',
1548 sq. ft. of living area
1200 sq. ft. on main
floor, 348 sq. ft. upstairs, 624 sq. ft. of porches/decks

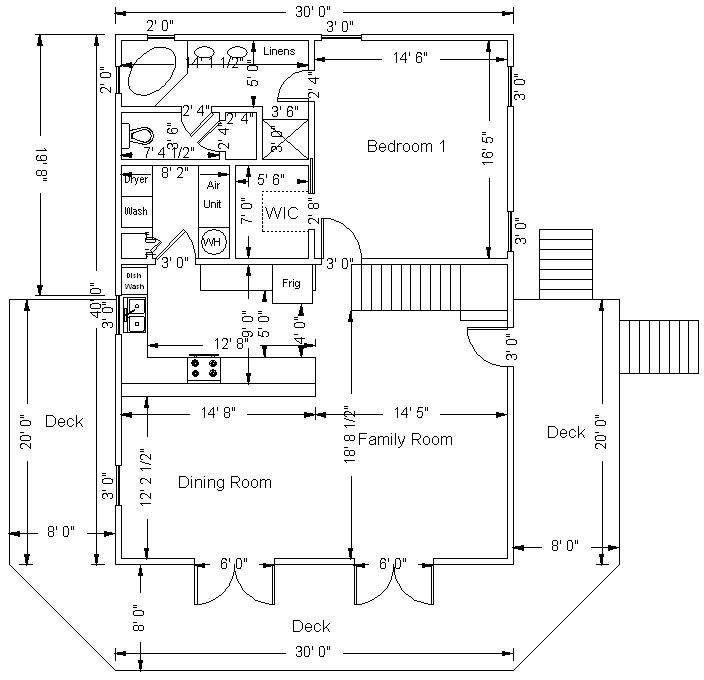

Main Floor

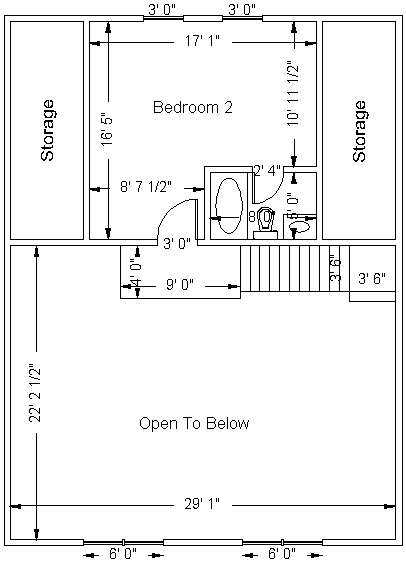

Upstairs

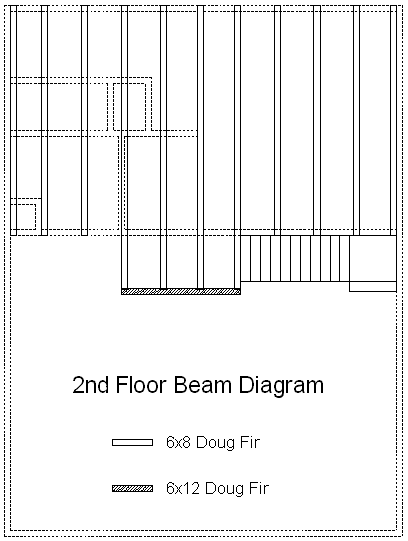

2nd Floor Timber Diagram (OPTIONAL)

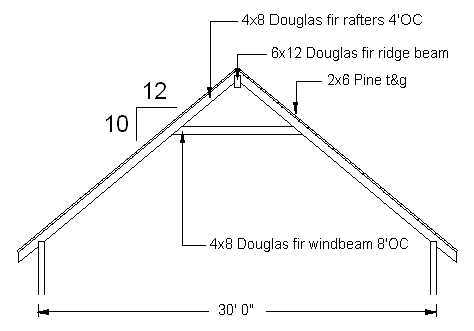

Cross-Section Roof Diagram (OPTIONAL)

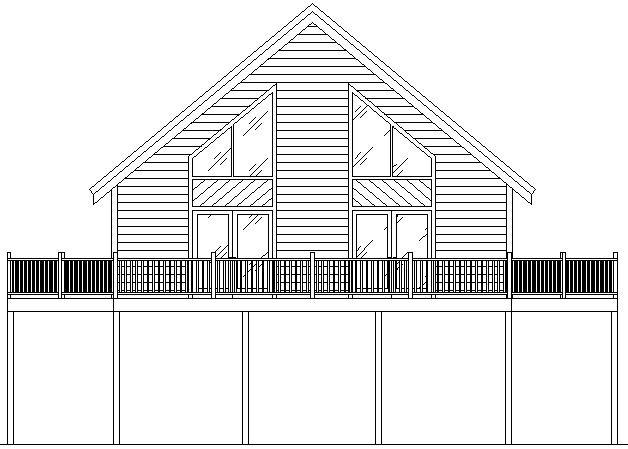

Front

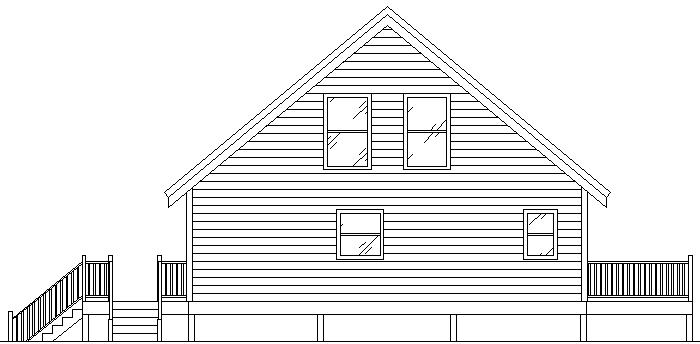

Right

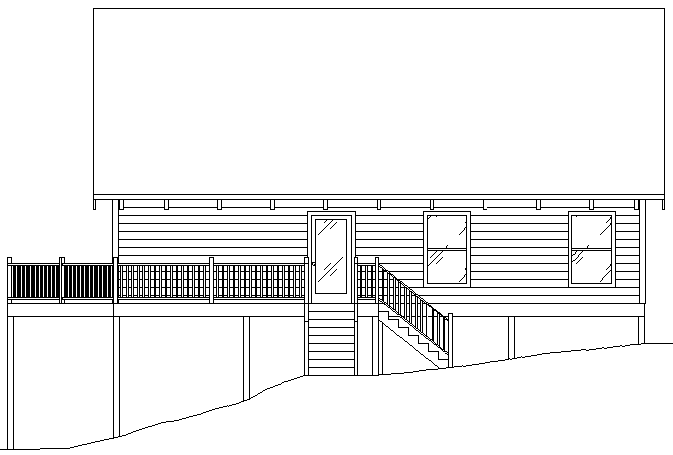

Back

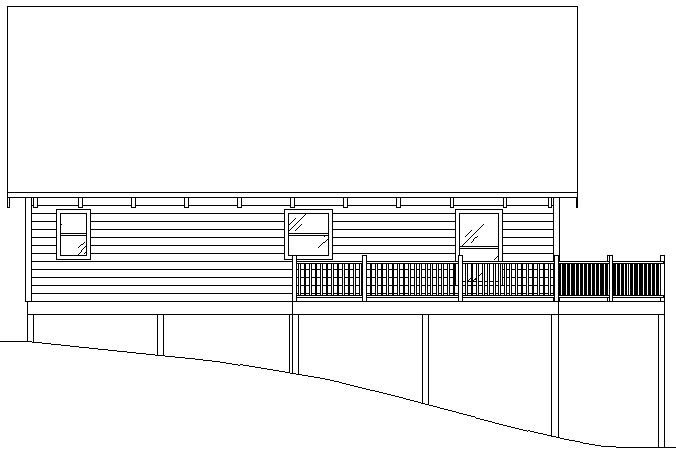

Left
