The Petersburg, 28'x36', 1670 sq. ft. of living area
1008 sq. ft. on main floor, 662 sq. ft. upstairs, 1008 sq. ft. in optional basement,
448 sq. ft. of porches/decks

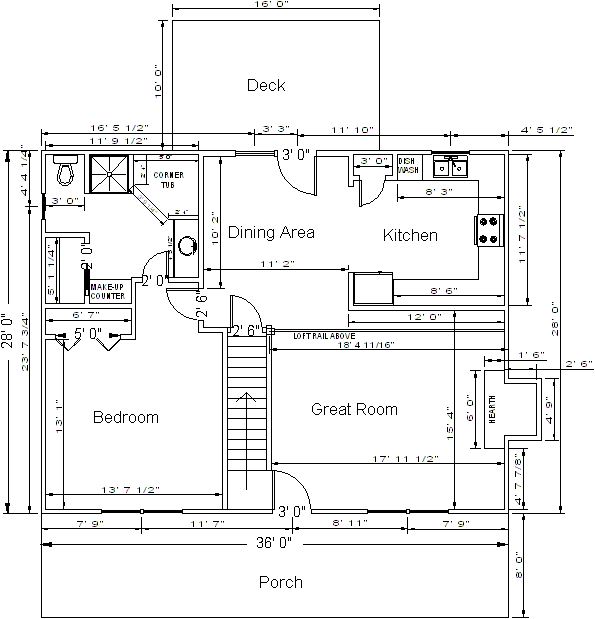

Main Floor

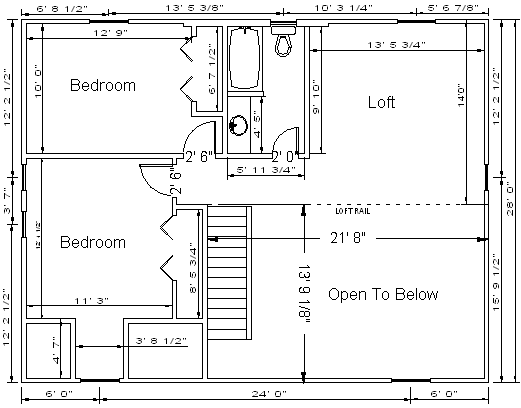

Upstairs

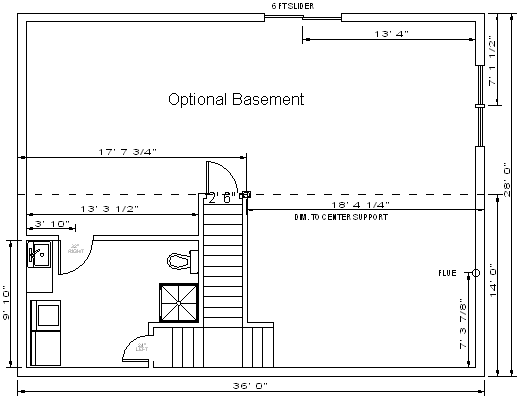

Optional Basement

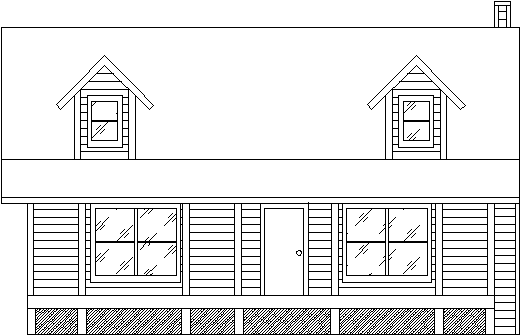

Front

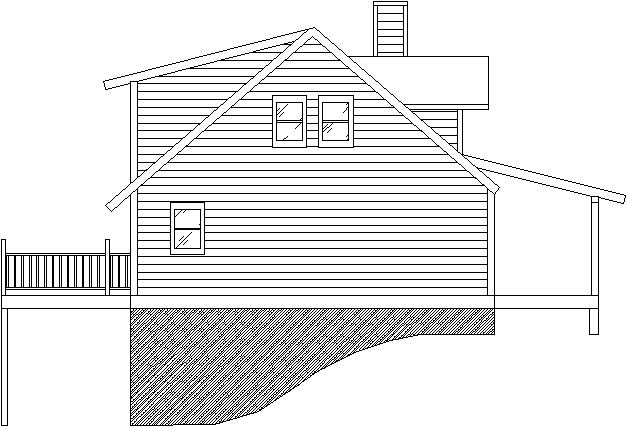

Right

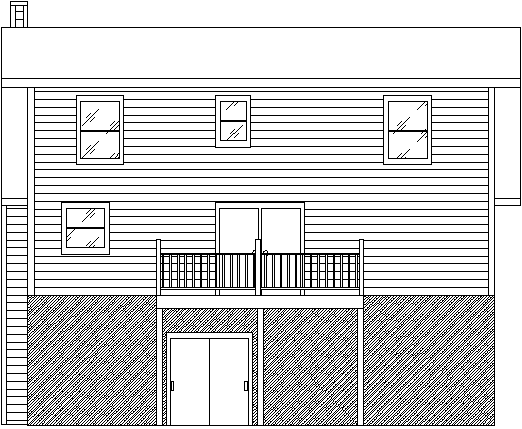

Back

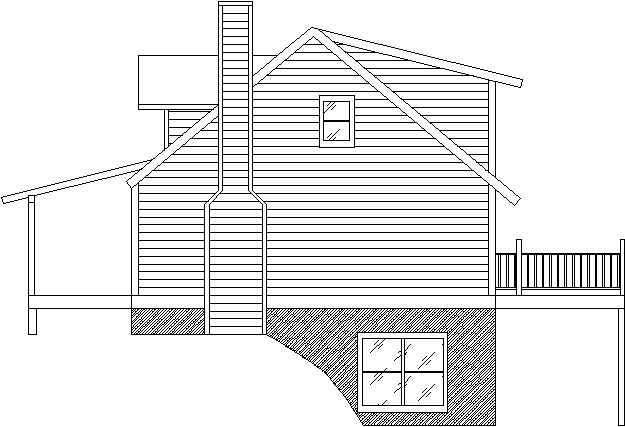

Left
